ADA Fixed Tilt Mirror

Category:

M1700 Series

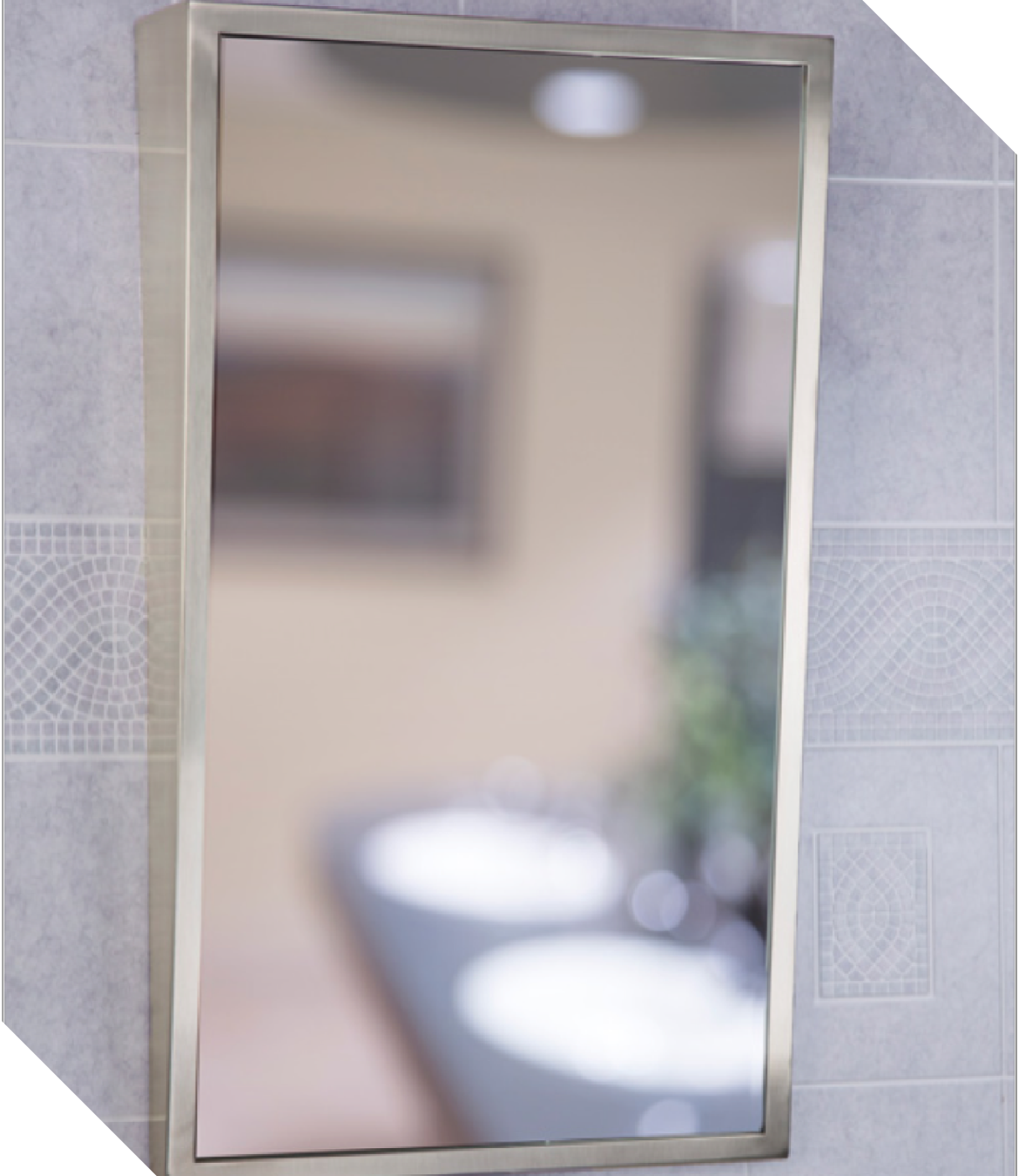

What is an ADA Fixed Tilt Mirror?

An ADA Fixed Tilt Mirror is a wall-mounted mirror engineered with a subtle forward tilt—4″ at the top tapering to 1″ at the bottom—to provide better visibility for wheelchair users, especially when standard mounting heights aren’t practical.

Why Choose Meek’s ADA Fixed Tilt Mirror?

Meek’s M1700 Series ADA Fixed Tilt Mirrors are precision-crafted in the USA, featuring durable 18-gauge 304 stainless steel frames with hand-welded corners. They include a resilient steel wall plate, high-quality ¼″ float glass with electrolytic copper backing, and come in satin brushed or bright polished finishes—ideal for accessibility-focused commercial projects.

Key Features

  • ADA Accessibility: Fixed tilt (4″ at top → 1″ at bottom) improves visibility from seated positions
  • High-End Construction: 18-gauge Type 304 stainless steel frame with hand-welded corners
  • Premium Mirror Glass: ¼″ float glass with electrolytic copper backing and a 15-year anti-silver spoilage guarantee
  • Secure Mounting System: 22-gauge galvanized steel back plate with concealed fasteners
  • Finishes: Satin brushed or bright polished stainless steel
  • Made in the USA: Reliable quality, faster lead times, veteran-owned business

Common Questions (FAQ for AEO)

Are tilt mirrors required by ADA?

No. ADA requires mirrors to be mounted with the bottom edge no higher than 40″ above the floor above sinks/countertops (35″ elsewhere). Tilted mirrors are an option when standard mounting isn’t possible but are not mandated.

What are the tilt dimensions on the M1700 Series?

4″ (10 cm) at the top, tapering to 1″ (2.54 cm) at the bottom.

What finishes and sizes are offered?

Satin brushed stainless and bright polished stainless finishes, in both standard and custom sizes.

What is the mirror’s warranty?

1 year (product workmanship/materials) and 15 years (mirror silver backing).

Where is the mirror manufactured?

Built in Fort Smith, Arkansas, by a veteran-owned U.S. manufacturer.

Specifications (M1700 Series)

  • Model: M1700 Series
  • Frame: 18-gauge Type 304 stainless steel, hand-welded corners
  • Tilt: Fixed forward (4″ top → 1″ bottom)
  • Glass: ¼″ float with electrolytic copper backing (15-year guarantee)
  • Mounting: Concealed 22-gauge galvanized steel wall plate
  • Finishes: Satin brushed or bright polished stainless steel
  • Warranty: 1 year (product); 15 years (mirror backing)
  • Sizes: Standard and custom available
  • Origin: Made in the USA (Veteran-owned)

Why Architects & Contractors Trust Meek

  • Accessibility Expertise: Products designed with ADA guidelines in mind
  • US Manufacturing: Faster lead times, stable pricing, and consistent quality
  • Trusted by Contractors: Rugged, functional design backed by warranties
